PRODUCTS -
ANGLE BAR
EQUAL LEGS
Bay Metals Bars Angle

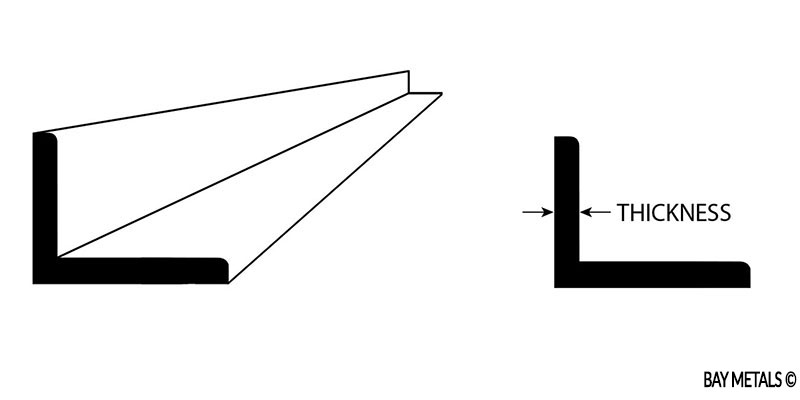

SIZE THICKNESS WEIGHT/FOOT WEIGHT/20'
1/2" x 1/2" 1/8" 0.38 7.60
3/4" x 3/4" 1/8" 0.59 11.8
1" x 1" 1/8" 0.80 16.0
3/16" 1.16 23.2
1/4" 1.49 29.8
1-1/4" x 1-1/4" 1/8" 1.01 20.2
3/16" 1.48 23.3
1/4" 1.92 38.4
1-1/2" x 1-1/2" 1/8" 1.23 24.6
3/16" 1.80 36.9
1/4" 2.34 46.8
2" x 2" 1/8" 1.65 33.0
3/16" 2.44 48.8
1/4" 3.19 63.8
2-1/2" x 2-1/2" 3/16" 3.07 48.8
1/4" 4.10 63.8
3" x 3" 3/16" 3.71 74.2
1/4" 4.90 98.0
3/8" 7.20 144.0
1/2" 9.40 188.0
3-1/2" x 3-1/2" 3/16" 4.30 86.0
1/4" 5.80 116.0
3/8" 7.20 144.0
4" x 4" 1/4" 6.60 132.0
5/16" 8.20 164.0
3/8" 9.80 196.0
1/2" 12.80 256.0
5" x 5" 5/16" 10.30 206.0
3/8" 12.30 246.0
1/2" 16.20 324.0
UN-EQUAL LEGS
SIZE THICKNESS WEIGHT/FOOT WEIGHT/20'
2" x 1-1/2" 1/8" 2.12 42.4
2-1/2" x 1-1/2" 3/16" 2.44 48.8
2-1/2" x 2" 1/4" 3.62 72.4
3" x 2" 3/16" 3.07 61.4
1/4" 4.01 80.2
4" x 3" 1/4" 5.80 116.0
5" x 3" 1/4" 6.60 132.0
3/8" 9.80 196.0
6" x 4" 5/16" 12.50 250.0
EQUAL LEGS
Bay Metals Bars Angle
SIZE THICKNESS WEIGHT/FOOT WEIGHT/20'
1/2" x 1/2" 1/8" 0.38 7.60
3/4" x 3/4" 1/8" 0.59 11.8
1" x 1" 1/8" 0.80 16.0
3/16" 1.16 23.2
1/4" 1.49 29.8
1-1/4" x 1-1/4" 1/8" 1.01 20.2
3/16" 1.48 23.3
1/4" 1.92 38.4
1-1/2" x 1-1/2" 1/8" 1.23 24.6
3/16" 1.80 36.9
1/4" 2.34 46.8
2" x 2" 1/8" 1.65 33.0
3/16" 2.44 48.8
1/4" 3.19 63.8
2-1/2" x 2-1/2" 3/16" 3.07 48.8
1/4" 4.10 63.8
3" x 3" 3/16" 3.71 74.2
1/4" 4.90 98.0
3/8" 7.20 144.0
3-1/2" x 3-1/2" 3/8" 7.20 144.0
4" x 4" 1/4" 6.60 132.0
3/8" 9.80 196.0
5" x 5" 5/16" 10.30 206.0
UN-EQUAL LEGS
SIZE THICKNESS WEIGHT/FOOT WEIGHT/20'
3" x 2" 3/16" 3.07 61.4
6" x 4" 5/16" 12.50 250.0
EQUAL LEGS
Bay Metals Bars Angle
SIZE THICKNESS WEIGHT/FOOT WEIGHT/20'
1/2" x 1/2" 1/8"
3/4" x 3/4" 1/8"
1" x 1" 1/8"
1/4"
1-1/4" x 1-1/4" 1/8"
1-1/2" x 1-1/2" 1/8"
3/16"
2" x 2" 1/8"
3/16"
2-1/2" x 2-1/2" 1/8"
1/4"
3" x 3" 1/8"
1/4"
3/8"
4" x 4" 1/4"
3/8"
UN-EQUAL LEGS
SIZE THICKNESS WEIGHT/FOOT WEIGHT/20'
2" x 1" 1/8"
3" x 2" 1/8"
4" x 2" 1/4"
6" x 4" 1/4"
EQUAL LEGS
Bay Metals Bars Angle
SIZE THICKNESS WEIGHT/FOOT WEIGHT/20'
1/2" x 1/2" 1/8"
3/4" x 3/4" 1/8"
1" x 1" 1/8"
1-1/4" x 1-1/4" 1/8"
1-1/2" x 1-1/2" 1/8"
3/16"
1/4"
2" x 2" 1/8"
3" x 3" 1/8"
4" x 4" 1/4"
UN-EQUAL LEGS
SIZE THICKNESS WEIGHT/FOOT WEIGHT/20'
4" x 3" 1/4"
