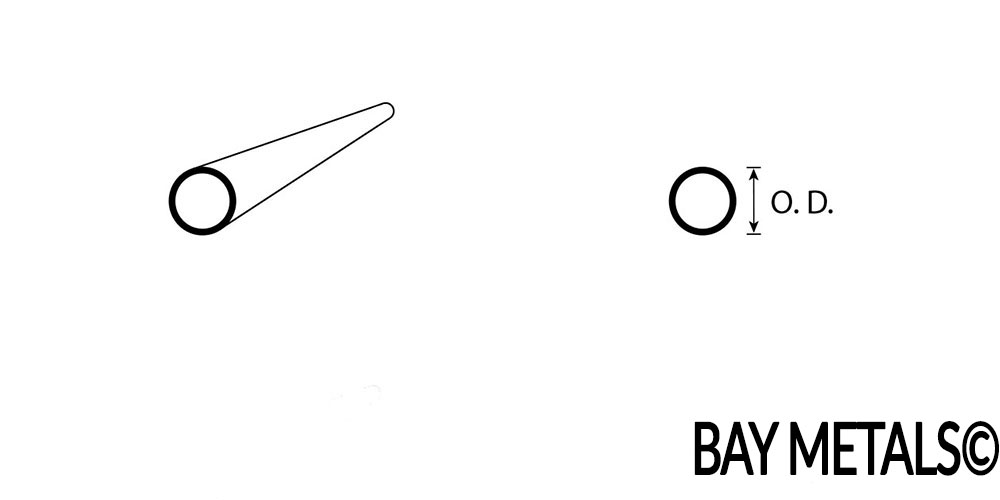

| NOMINAL SIZE | OUTSIDE DIAMETER | WALL THICKNESS | WEIGHT/FOOT | WEIGHT/21' |
| 1/2" | 0.840 | 0.109 | 0.85 | 17.9 |
| 3/4" | 1.050 | 0.113 | 1.13 | 23.8 |
| 1" | 1.315 | 0.133 | 1.679 | 35.3 |
| 1-1/4" | 1.660 | 0.140 | 2.27 | 47.7 |
| 1-1/2" | 1.900 | 0.145 | 2.72 | 57.1 |
| 2" | 2.375 | 0.154 | 3.65 | 76.7 |
| 2-1/2" | 2.875 | 0.203 | 5.79 | 121.7 |
| 3" | 3.500 | 0.216 | 7.58 | 159.1 |
| 3-1/2" | 4.000 | 0.226 | 9.11 | 191.3 |
| 4" | 4.500 | 0.237 | 10.79 | 226.6 |
| 5" | 5.563 | 0.258 | 14.62 | 307.0 |
| 6" | 6.625 | 0.280 | 18.97 | 398.4 |
| NOMINAL SIZE | OUTSIDE DIAMETER | WALL THICKNESS | WEIGHT/FOOT | WEIGHT/21' |
| 1" | 1.050 | 0.083 | 0.86 | 18.1 |
| 1-1/4" | 1.660 | 0.109 | 1.81 | 38.01 |
| 1-1/2" | 1.900 | 0.109 | 2.09 | 43.89 |

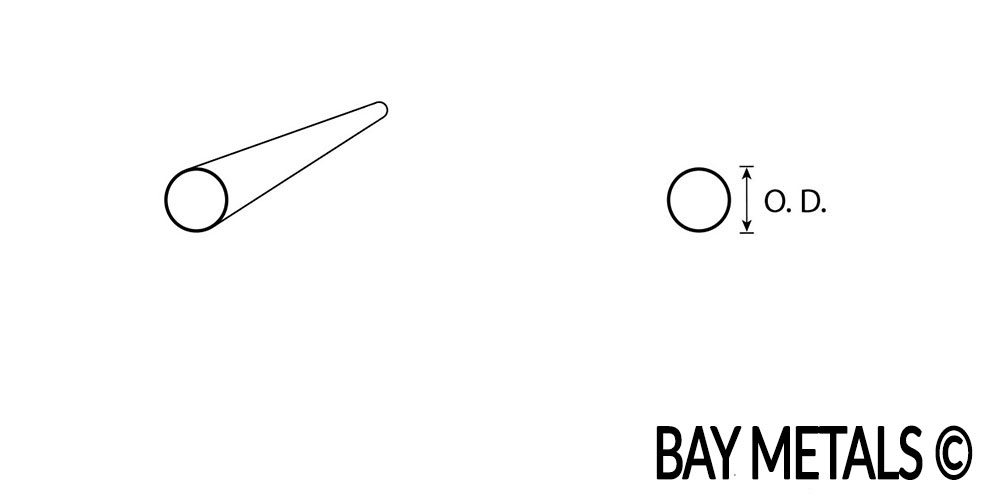

| DIAMETER | GAUGE | WEIGHT/FOOT | WEIGHT/20' |
| 1/2" | 16GA | 0.30 | 6.0 |
| 5/8" | 16GA | 0.39 | 7.8 |
| 3/4" | 16GA | 0.48 | 9.6 |
| 1" | 16GA | 0.65 | 13.0 |
| 13GA | 0.92 | 18.4 | |
| 1-1/4" | 16GA | 0.82 | 16.4 |
| 11GA | 1.45 | 29.0 | |
| 1-1/2" | 16GA | 1.00 | 20.0 |
| 13GA | 1.43 | 28.6 | |
| 11GA | 1.77 | 35.4 | |
| 2" | 16GA | 1.34 | 26.8 |
| 3" | 16GA | 2.04 | 40.8 |
| 4" | 11GA | 4.98 | 99.5 |
